Equipment Details of IdeaLab

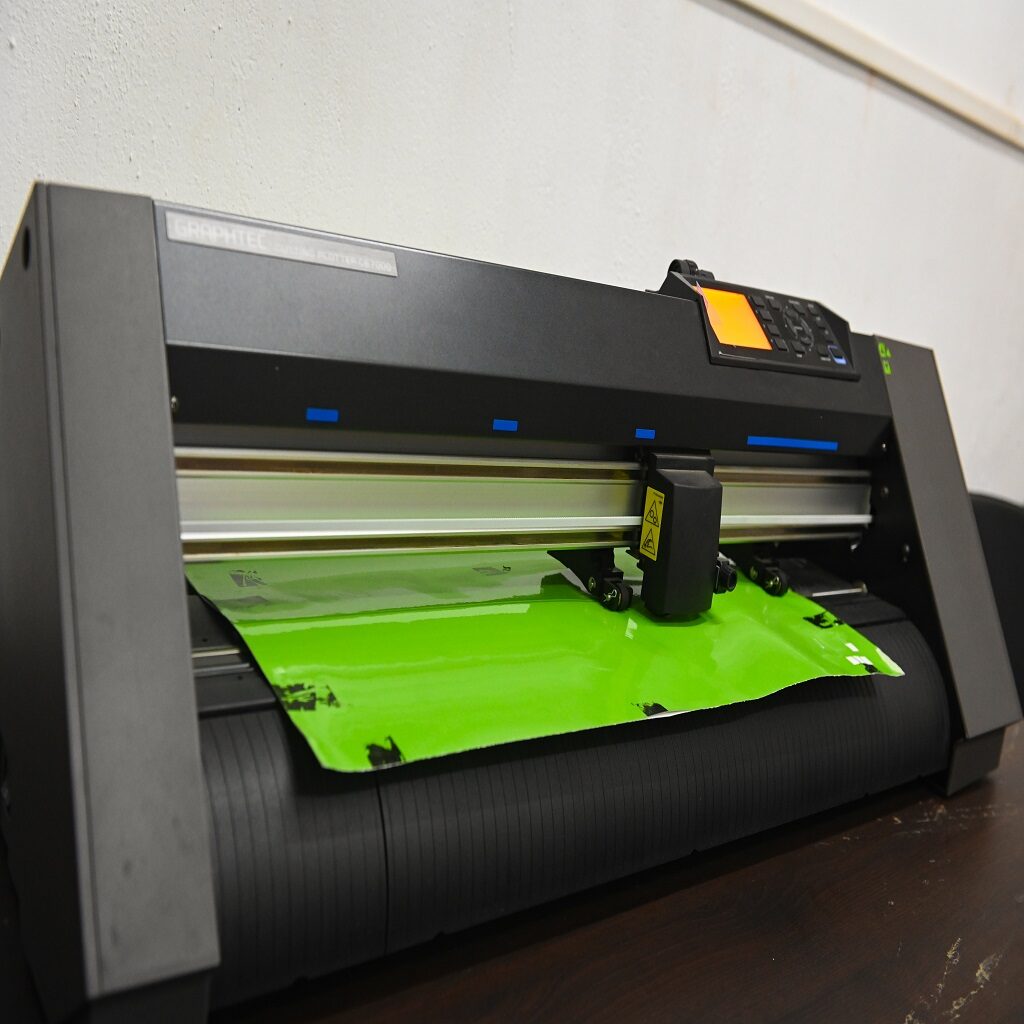

Vinyl Plotter Machine

Make: Graphtec

Mountable media width: Min. 1.97 in to Max. 28.03 in, (Min. 50 mm to Max. 712 mm), Programmable resolution: GPGL 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL 0.025 mm, Maximum Cutting Area: 23.74 in x 164 ft 0.5 in

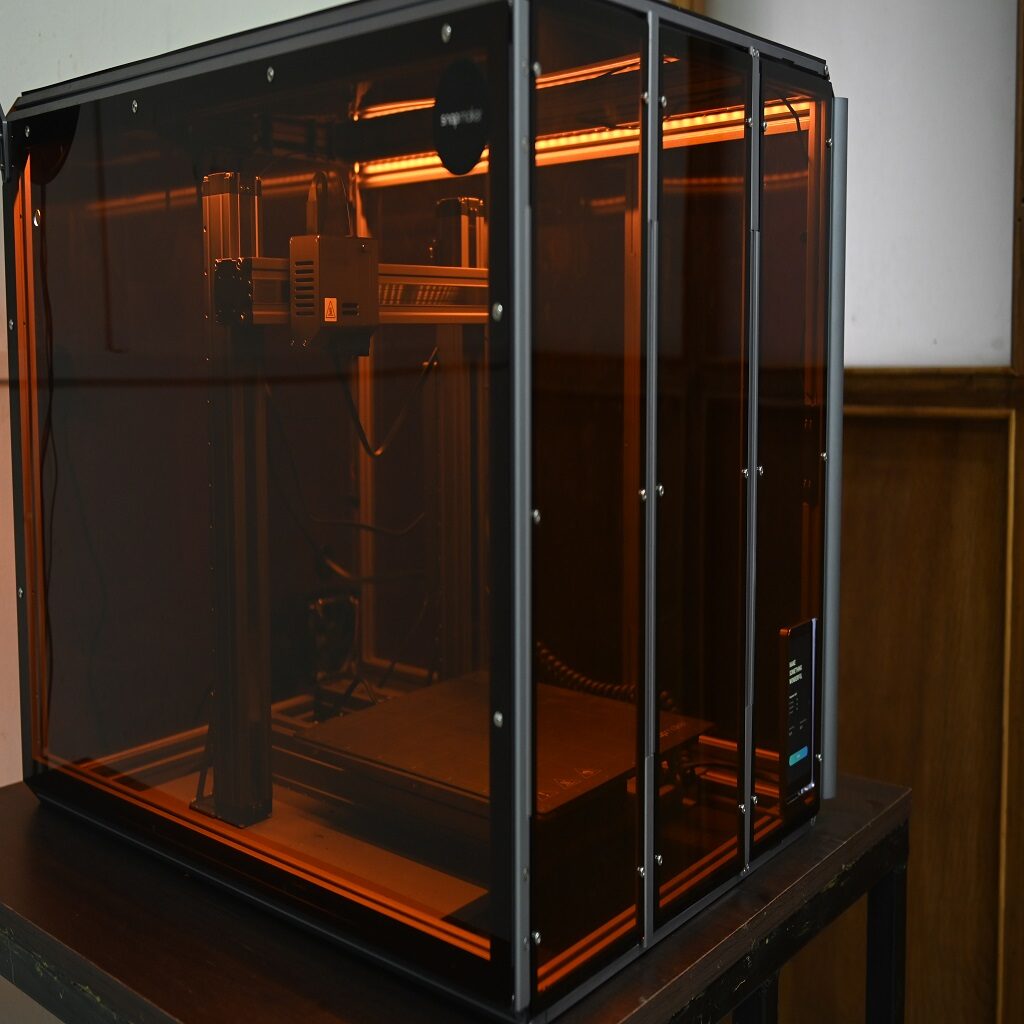

3D Printer

Make: Snapmaker


FDM Technology, Bed Size: 320x350x330 mm, Magnetic Heated Bed with removable Print Sheet for 3D Printing, Compatible with 3D Printing, Laser Engraving/Cutting & CNC Carving/Milling, Frame Material :Aluminium Alloys Connectivity :Wi-Fi, USB Cable, USB Flash Drive, Touchscreen: 5”, Android OS, Quad-Core A7 CPU @ 1.1GHz Supported OS: macOS, Windows, Linux Rated Power : 320W

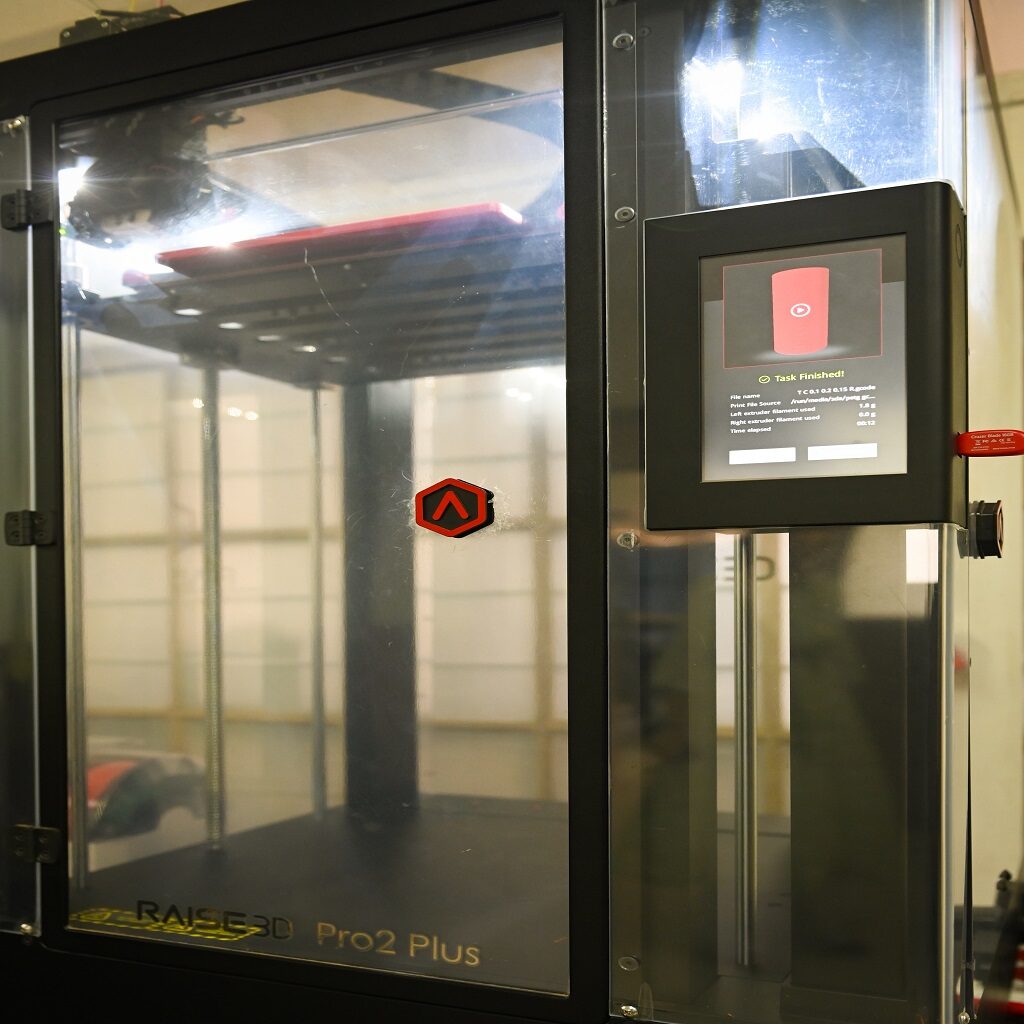

3D Printer

Make: Raise 3D Pro 2 Plus


FDM Technology, Build Volume: 280×305×605 mm (Dual Nozzle), XYZ Step Size: 0.78125, 0.78125, 0.078125 micron, Filament Diameter: 1.75 mm [0.069 in], Print Head Travel Speed: 30 – 150 mm/s, Max Build Plate Temperature: 110 ºC, Supported Materials: PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ NYLON/ PETG/ ASA/ PP/ Glass Fiber Filled/ Wood-Filled/ Carbon Fiber Enforced, Nozzle Diameter: 0.2/ 0.4/ 0.6/ 0.8mm, Max Nozzle Temperature: 300 ºC, Power Supply Input: Universal 100-240 VAC, 50/60 Hz, Power Supply Output: 600 Watts, 24 VDC, Machine Size (W×D×H): 620×590×1105 mm

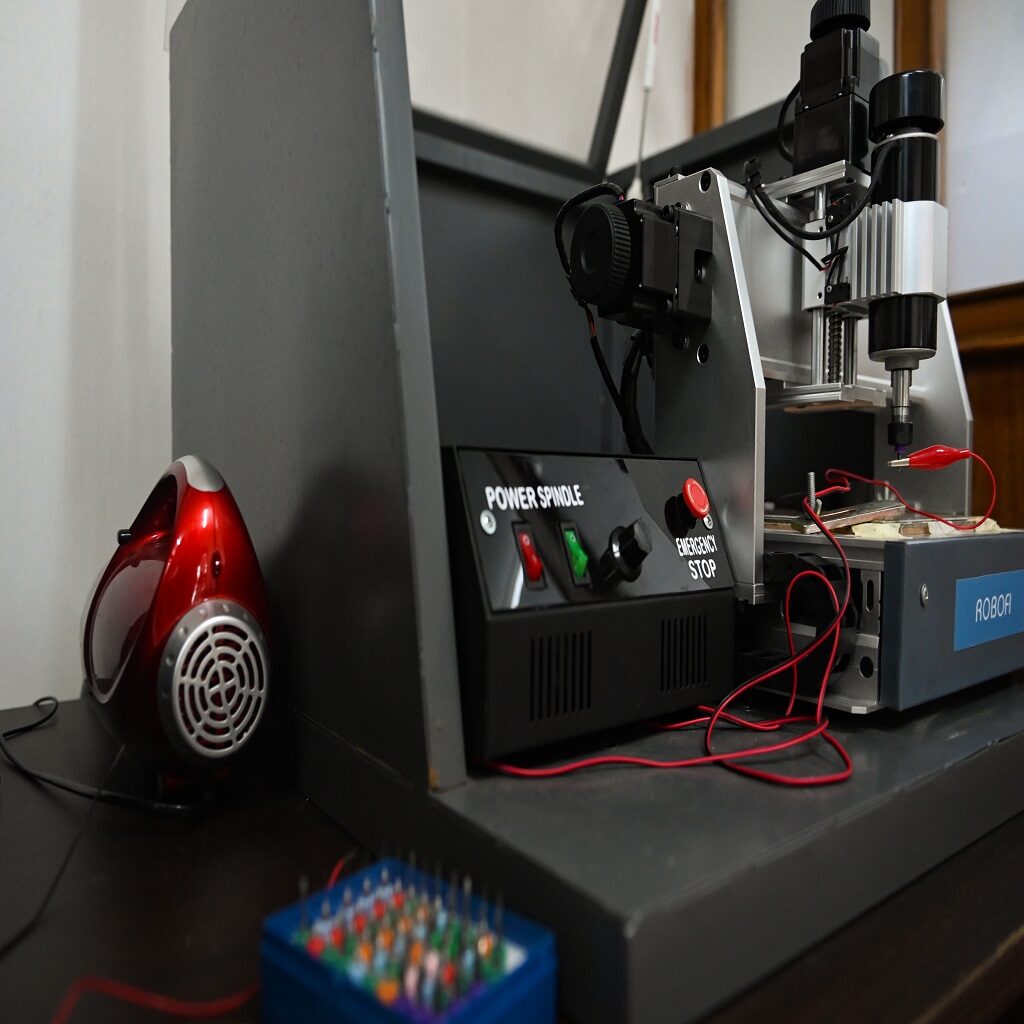

PCB Prototype Machine

Make: Robofi


Working Bed area : 300 mm x 300 mm, Working Area for Drilling & Routing : 300 mm x 300 mm, Clamping System : Bakelite Bed, Mechanical Drive : Imported Premium Quality Rolled Ball Screw (HIWIN or PMI), PC Based control system, Accuracy: 50 micron, Drill per min : 90+ holes per min, Drilling : 0.6 & above, Engraving : Track width : 0.3 mm, PCB CAM software, CPU, Monitor & Mouse, Electrical Drive : Stepper Motors & Drive for X, Y & Z, Spindle: Air cooled :: Manual tool change 18,000 RPM

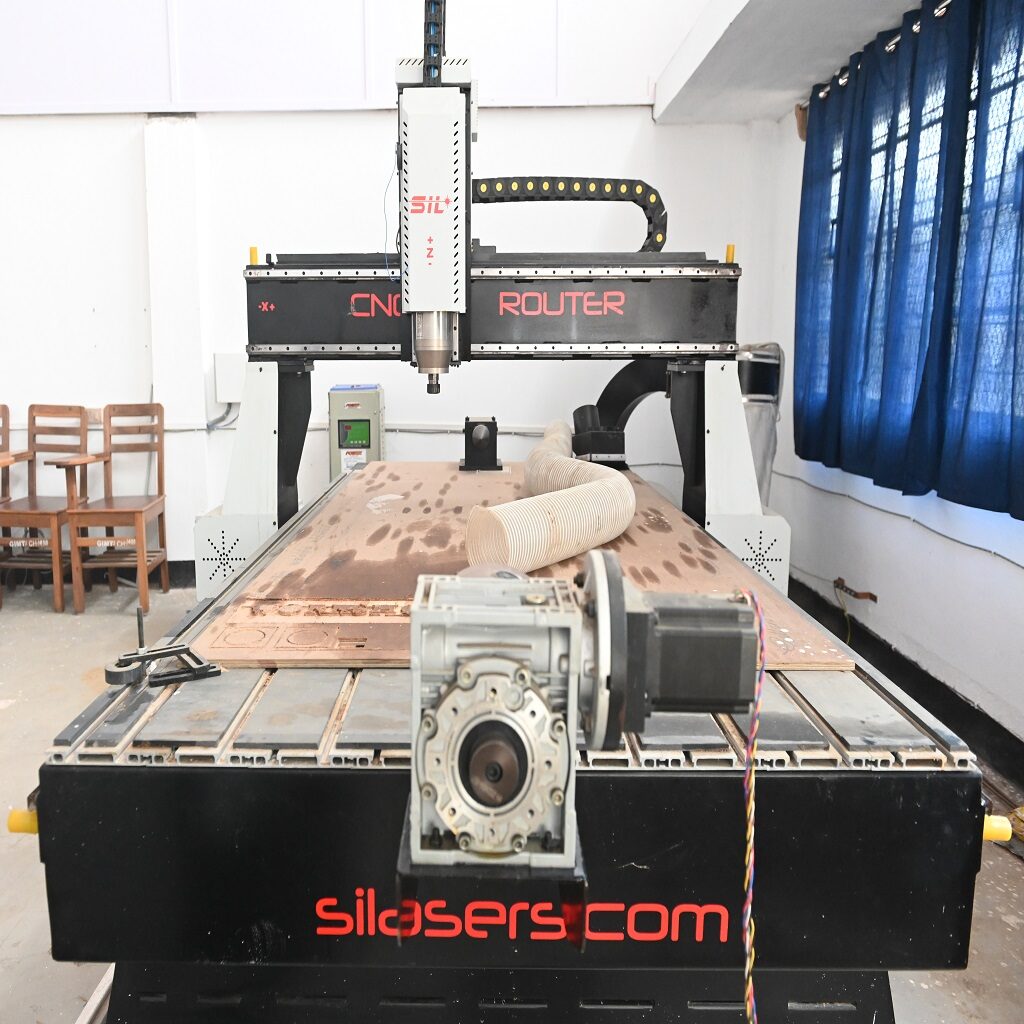

CNC Wood Router

Make: SIL


Bed Size: 8×4, Spindle 5.5KW Water Cooled with 24000 rpm, X axis Stroke 1250 mm, Y Axis Stroke 2450 mm, Z Axis Stroke 200 mm, Working Area 1250 mm X 2450 mm, X, Y Positioning Accuracy ±0.03 mm/m, Machine Working Voltage Three Phase 480V

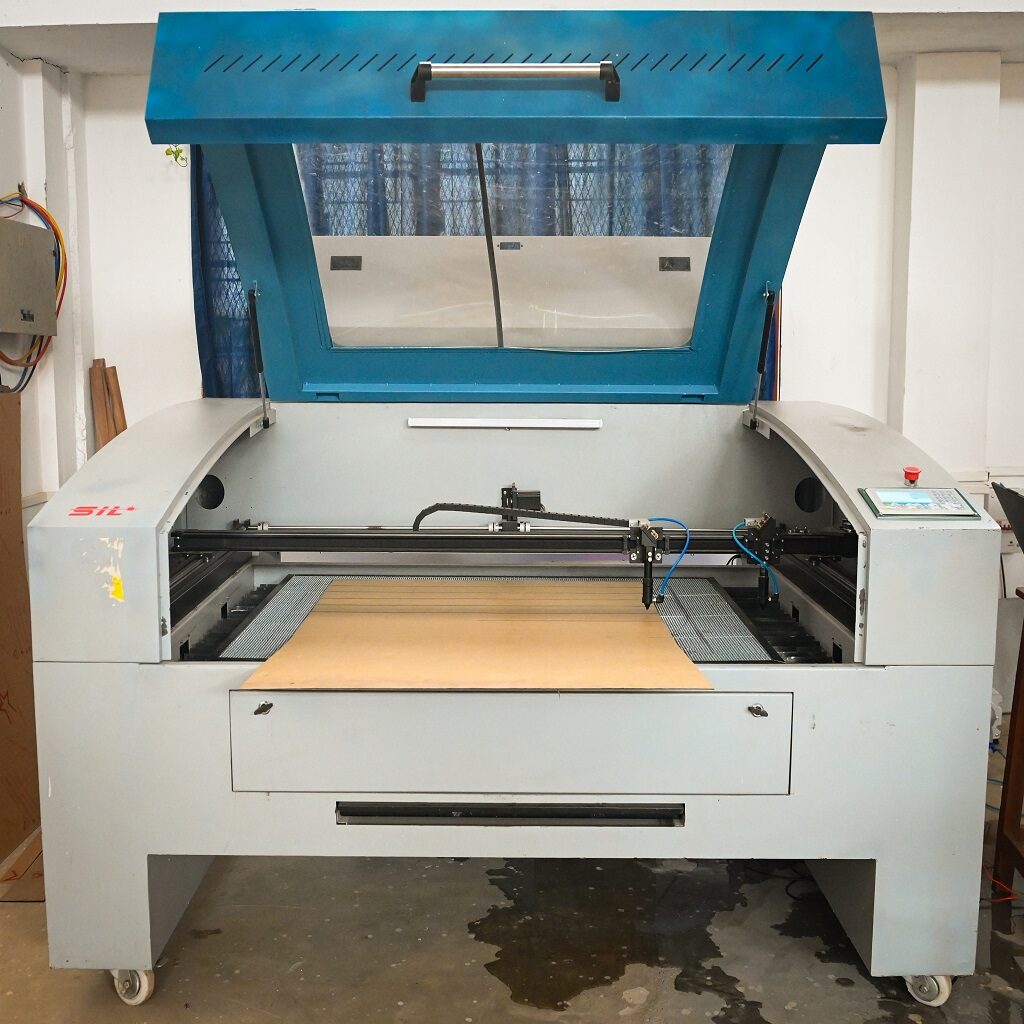

CO2 Laser Engraver & Cutting Machine

Make: SIL
Inbuilt Double Exhaust Blowers, Industrial Water Chiller, Air Compressor, Focusing Lens, Dia. 20 mm Mirrors, 64 Bits Offline DSP Controller, Bed size (4×3 feet), 100W Laser Tube Dual Head
